Electromagnetic Compatibility

鉄道、船舶分類、原子力、防衛産業で使用される電気・電子部品や製品から偶発的に発生・伝搬する電磁干渉（EM|）が他の機器の機能に影響を与えないかを確認する電磁適合性評価試験です。また、他のデバイスから発生する電磁干渉からデバイスが本来の性能 (EMS) を維持できるかどうかを確認することもできます。

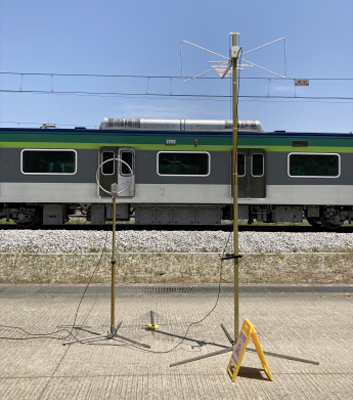

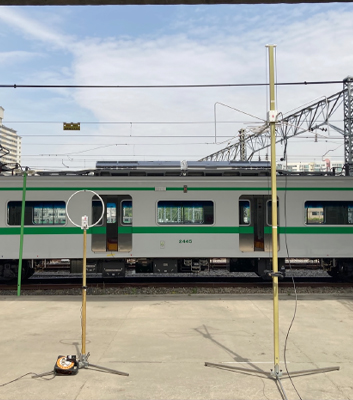

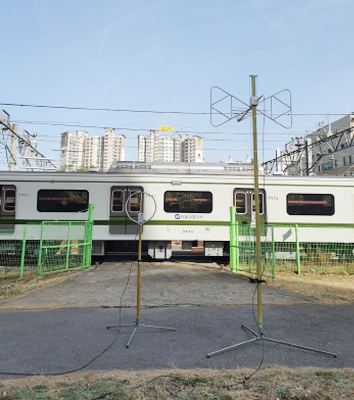

鉄道 Railway

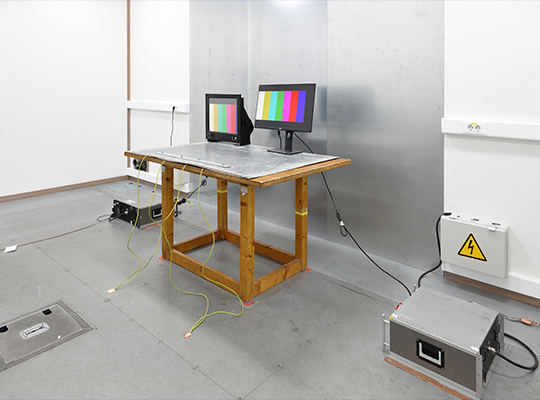

船級 SHIP

船級	試験項目	試験要約
DNV BV RINA ABS NK LR KR E10	CISPR 16-2-3	Radiated Emission
	CISPR 16-2-1	Conducted Emission
	IEC 61000-4-2	Electrostatic Discharge Test
	IEC 61000-4-3	Radiated Susceptibility Test
	IEC 61000-4-4	Electrical Fast Transient/Burst Test
	IEC 61000-4-5	Electrical Slow Transient/Surge Test
	IEC 61000-4-6	Conducted Radio Frequency Test
	IEC 61000-4-11	Voltage Dip and Variation Test
	IEC 60533	Conducted Low Frequency Test

原子力 NUCLEAR POWER PLANT

試験項目			試験内容		試験要約
USNRC REGULATORY GUIDE.1.180 : 2003	MIL-STD-461E	CE101 CE102	Conducted Emissions (power Leads)		Freq. Range : 30 Hz ~ 10 kHz Freq. Range : 10 kHz ~ 2 MHz
		RE101 RE102	Radiated Emissions		Magnetic Field : 30 Hz ~ 100 kHz Electric Field : 2 MHz ~ 10 GHz
		RS101 RS103	Radiated Susceptibility		Magnetic Field : 30 Hz ~ 100 kHz Electric Field : 30 MHz ~ 10 GHz
		CS101 CS114 CS115 CS116	Conducted Susceptibility		Power Leads : 30 Hz~150 kHz Bulk Cable Injection : 10 kHz ~ 3 MHz Bulk Cable Injection, Impulse Excitation Damped Sinusoidal Transients to the Cables : 10 kHz, 100 kHz, 1 MHz, 10 MHz, 30 MHz, 100 MHz
	IEE C62.41-1991		SWC	Ring Wave	Low Exposure : ±2 kV Medium Exposure : ±4 kV
				Combination Wave	Low Exposure : ±2 kV Medium Exposure : ±4 kV
				EFT/Burst	Low Exposure : ±2 kV Medium Exposure : ±4 kV
IEC61000-4-2			Electrostatic Discharge		Contact Discharge : ±8 kV Air Discharge : ±15 kV
IEEE C37.90.1 : 2012 IEEE C37.90.2 : 2004					SWC Tests for Protective Relays and Relay Systems Radiated Electromagnetic Interference for Transceivers.
MIL-STD-461E ALTERNATE 試験提供: IEC 61000-4-3, IEC 6100-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-10, IEC 61000-4-12, IEC 61000-4-13, IEC 61000-4-16, IEC 61000-6-4

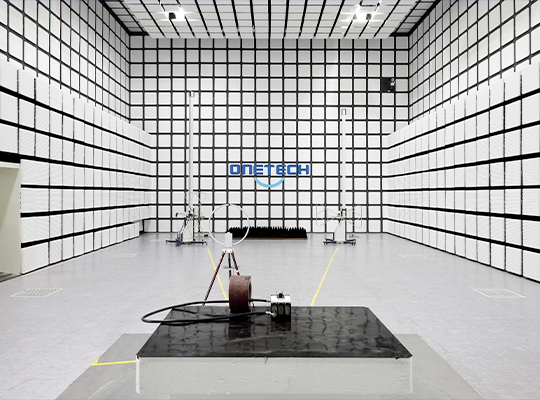

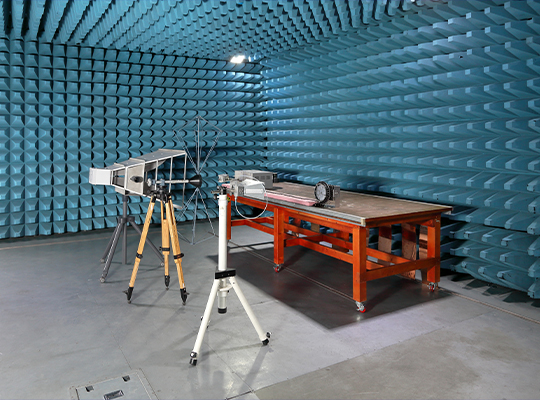

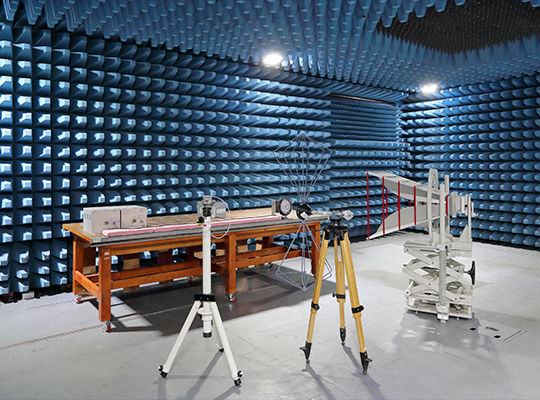

Inside Size : 8.9 m * 6.3 m * 3.1 m (W*D*H) / Door Size : 2.5 m * 3 m (W*H)

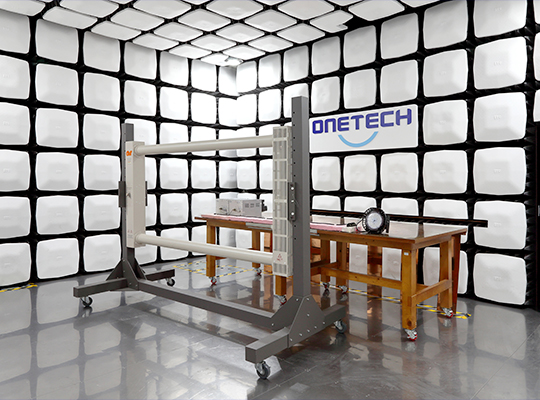

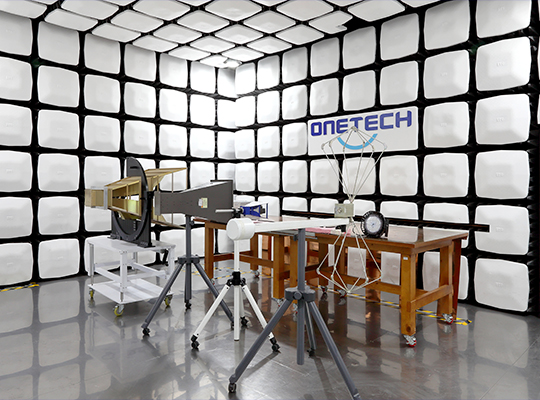

防衛産業 MIL (MIL-STD-461E/F/G, MIL-STD-704F)

試験項目	試験内容	試験要約
CE101	CONDUCTED EMISSIONS	Power Leads, 30 Hz ~ 10 kHz
CE102	CONDUCTED EMISSIONS	Power Leads, 10 kHz ~ 10 MHz
CE106	CONDUCTED EMISSIONS	Antenna Terminal, 10 kHz to 40 GHz
CS101	CONDUCTED SUSCEPTIBILITY	Power Leads, 30 Hz ~ 150 kHz
CS103	CONDUCTED SUSCEPTIBILITY	Antenna Port, Intermodulation, 15 kHz to 10 GHz
CS104	CONDUCTED SUSCEPTIBILITY	Antenna Port, Rejection of Undesired Signals, 30 Hz to 20 GHz
CS105	CONDUCTED SUSCEPTIBILITY	Antenna Port, Cross Modulation, 30 Hz to 20 GHz
CS106	CONDUCTED SUSCEPTIBILITY	Transients, Power Leads
CS114	CONDUCTED SUSCEPTIBILITY	Bulk Cable Injection, 4 kHz ~ 200 MHz
CS115	CONDUCTED SUSCEPTIBILITY	Bulk Cable Injection, Impulse Excitation
CS116	CONDUCTED SUSCEPTIBILITY	Damped Sinusoidal Transients, Cables and Power Leads, 10 kHz, 100 kHz, 1 MHz, 10 MHz, 30 MHz, 100 MHz
CS118	PERSONNEL BORNE ESD	Contact : ±8 kV, Air : ±15 kV
RE101	RADIATED EMISSIONS	Magnetic Field, 30 Hz ~ 100 kHz
RE102	RADIATED EMISSIONS	Electric Field, 10 kHz ~ 18 GHz
RS101	RADIATED SUSCEPTIBILITY	Magnetic Field, 30 Hz ~ 100 kHz
RS103	RADIATED SUSCEPTIBILITY	Electric Field, 2 MHz ~ 18 GHz
