Business field사업분야
사업분야


전자파적합

Electromagnetic Compatibility
철도, 선급, 원자력, 방위산업 등에 사용되는 전기,전자부품 및 제품으로부터 우발적으로 발생하여 전파되는 전자파 장해(EMI)가
다른 기기의 기능에 영향을 주지 않고, 또한, 다른 기기에서 발생된 전자파 장해로부터 기기가 본연의 성능을 유지(EMS)할 수
있는가를 확인하는 전자파적합성 평가 시험입니다.
철도 Railway

주요업무지원

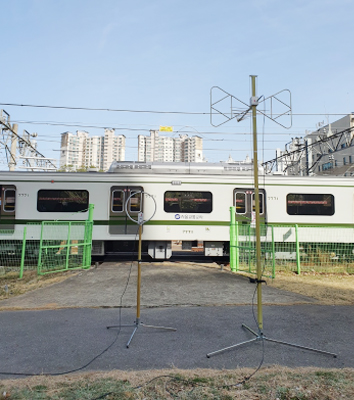

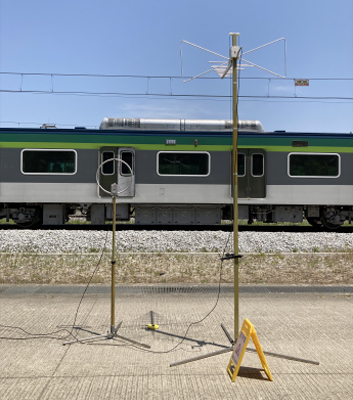

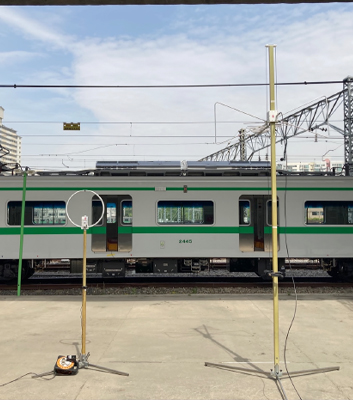

  • KTX 및 SRT 전동차 현장시험, KORAIL 및 METRO용 시험, KOLAS, Debug Consulting

01 대상품목

  • 전동차(완성차시험)

  • 통신장치

  • 추진제어장치

  • 방송제어장치

  • ENCODER

  • 냉난방제어장치등

  • BATTERY 충전기

02 업무지원 시험분야 및 적용규격

IEC 규격 EN 규격 KRS 규격
IEC 62236-1 EN 50121-1 KRS-CS-0003-21R
IEC 62236-2 EN 50121-2 KRS-SG-0015-20R
IEC 62236-3-1 EN 50121-3-1 KRS-SG-0033-21R
IEC 62236-3-2 EN 50121-3-2 KRS-SG-0036-19R
IEC 62236-4 EN 50121-4 KRS-SG-0038-21R
IEC 62236-5 EN 50121-5 KRS-SG-0054-21R
- - KRS-SG-0055-21R
- - KRS-SG-0067-14

03 주요 시험장비

선급 SHIP

주요업무지원

  • KR, DNV, LR, ABS, BV, RINA, IRS, RS, NK, CCS 인증업무

    96/98/EC(MED)에 의한 WHEEL 마크

01 대상품목

  • Computer Systems

  • Alarm & Monitoring System

  • Controllers & Control System

  • Electronic Programmer

  • Speed & Shaft Horse Power

  • Sensing Equipment Fire

  • Detection System

  • Switches (압력, 온도, Limit Level 등)

  • Fire Detector

  • Oil Mist Detector

  • Actuators

  • Lighting Device 등

02 업무지원 시험분야 및 적용규격

선급 시험항목 시험요약
DNV
BV
RINA
ABS
NK
LR
KR
E10 		CISPR 16-2-3 Radiated Emission
CISPR 16-2-1 Conducted Emission
IEC 61000-4-2 Electrostatic Discharge Test
IEC 61000-4-3 Radiated Susceptibility Test
IEC 61000-4-4 Electrical Fast Transient/Burst Test
IEC 61000-4-5 Electrical Slow Transient/Surge Test
IEC 61000-4-6 Conducted Radio Frequency Test
IEC 61000-4-11 Voltage Dip and Variation Test
IEC 60533 Conducted Low Frequency Test

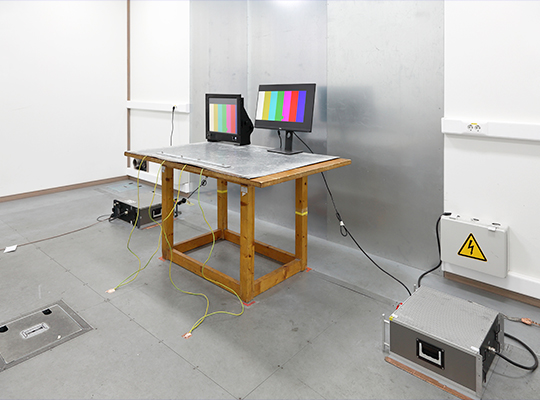

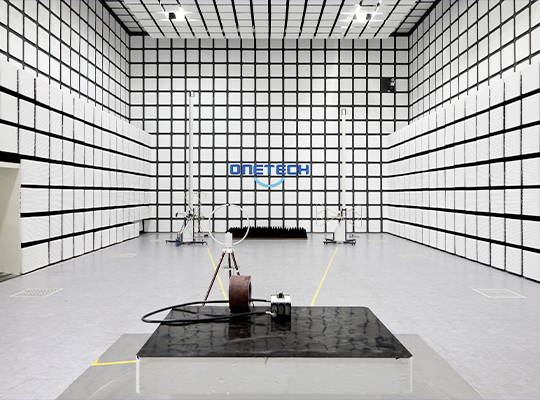

03 주요 시험장비

원자력 NUCLEAR POWER PLANT

주요업무지원

  • 원자력안전등급(Q,A,S)에 따른 원자력시험 및 Debug Consulting

    원전 안전관련설비 성능검증기관용 성증검증계획서 및 성능검증보고서 발행

01 대상품목

  • Control Panel, Signal Converter

  • Transmitter(Temperature, Pressure, Level 등)

  • Battery Charger

  • Digital Equipment or Components 등

  • Relay System, 방사선 감시기, 고압차단기반, 진동감시시스템, 통신격리함, 전력분배기, 전원공급기, 전압변환기, 등기구 등

02 업무지원 시험분야 및 적용규격

시험항목 시험내용 시험요약
USNRC
REGULATORY
GUIDE.1.180 :
2003 		MIL-STD-461E CE101
CE102 		Conducted Emissions
(power Leads)
  • Freq. Range : 30 Hz ~ 10 kHz
  • Freq. Range : 10 kHz ~ 2 MHz
RE101
RE102 		Radiated Emissions
  • Magnetic Field : 30 Hz ~ 100 kHz
  • Electric Field : 2 MHz ~ 10 GHz
RS101
RS103 		Radiated
Susceptibility
  • Magnetic Field : 30 Hz ~ 100 kHz
  • Electric Field : 30 MHz ~ 10 GHz
CS101
CS114
CS115
CS116 		Conducted
Susceptibility
  • Power Leads : 30 Hz~150 kHz
  • Bulk Cable Injection :
    10 kHz ~ 3 MHz
  • Bulk Cable Injection, Impulse
    Excitation Damped Sinusoidal
    Transients to the Cables : 10 kHz,
    100 kHz, 1 MHz, 10 MHz, 30 MHz,
    100 MHz
IEE
C62.41-1991 		SWC Ring Wave
  • Low Exposure : ±2 kV
  • Medium Exposure : ±4 kV
Combination Wave
  • Low Exposure : ±2 kV
  • Medium Exposure : ±4 kV
EFT/Burst
  • Low Exposure : ±2 kV
  • Medium Exposure : ±4 kV
IEC61000-4-2 Electrostatic Discharge
  • Contact Discharge : ±8 kV
  • Air Discharge : ±15 kV
IEEE C37.90.1 : 2012
IEEE C37.90.2 : 2004
  • SWC Tests for Protective Relays
    and Relay Systems
  • Radiated Electromagnetic
  • Interference for Transceivers.
MIL-STD-461E ALTERNATE 시험제공 : IEC 61000-4-3, IEC 6100-4-4, IEC 61000-4-5, IEC 61000-4-6,
IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-10, IEC 61000-4-12, IEC 61000-4-13, IEC 61000-4-16, IEC 61000-6-4

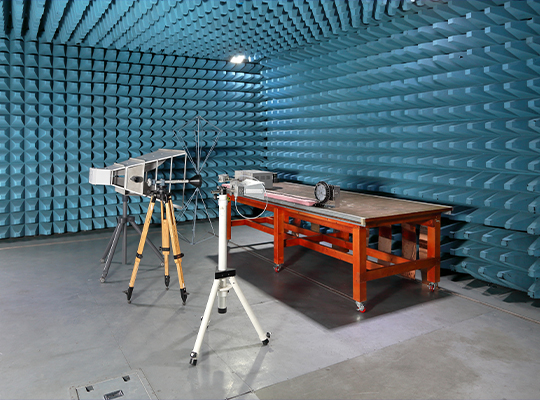

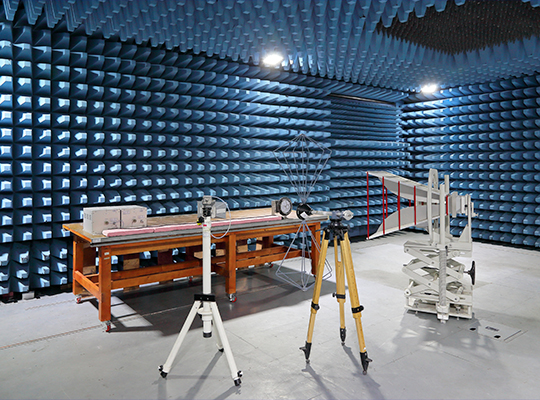

03 주요 시험장비

챔버 정보 Inside Size : 8.9 m * 6.3 m * 3.1 m (W*D*H) / Door Size : 2.5 m * 3 m (W*H)

방산 MIL (MIL-STD-461E/F/G, MIL-STD-704F)

주요업무지원

  • MIL-STD-461E/F/G, 704F 규격의 시험, KOLAS, Debug Consulting

01 대상품목

  • 육군,해군 및 공군에서 사용하는 모든 전기 전자장비

  • K2/K9 controler, 군함용 Window Brush, 미사일 발사체 등

  • 위성안테나, 관성측정기, 방사능탐지기, 탄전원제어지, 고전압배터리팩, 전원공급기, 군함용 등기구 등

02 업무지원 시험분야 및 적용규격

시험항목 시험내용 시험요약
CE101 CONDUCTED EMISSIONS Power Leads, 30 Hz ~ 10 kHz
CE102 CONDUCTED EMISSIONS Power Leads, 10 kHz ~ 10 MHz
CE106 CONDUCTED EMISSIONS Antenna Terminal, 10 kHz to 40 GHz
CS101 CONDUCTED SUSCEPTIBILITY Power Leads, 30 Hz ~ 150 kHz
CS103 CONDUCTED SUSCEPTIBILITY Antenna Port, Intermodulation,
15 kHz to 10 GHz
CS104 CONDUCTED SUSCEPTIBILITY Antenna Port, Rejection of Undesired Signals,
30 Hz to 20 GHz
CS105 CONDUCTED SUSCEPTIBILITY Antenna Port, Cross Modulation,
30 Hz to 20 GHz
CS106 CONDUCTED SUSCEPTIBILITY Transients, Power Leads
CS114 CONDUCTED SUSCEPTIBILITY Bulk Cable Injection, 4 kHz ~ 200 MHz
CS115 CONDUCTED SUSCEPTIBILITY Bulk Cable Injection, Impulse Excitation
CS116 CONDUCTED SUSCEPTIBILITY Damped Sinusoidal Transients, Cables
and Power Leads, 10 kHz, 100 kHz, 1 MHz,
10 MHz, 30 MHz, 100 MHz
CS118 PERSONNEL BORNE ESD Contact : ±8 kV, Air : ±15 kV
RE101 RADIATED EMISSIONS Magnetic Field, 30 Hz ~ 100 kHz
RE102 RADIATED EMISSIONS Electric Field, 10 kHz ~ 18 GHz
RS101 RADIATED SUSCEPTIBILITY Magnetic Field, 30 Hz ~ 100 kHz
RS103 RADIATED SUSCEPTIBILITY Electric Field, 2 MHz ~ 18 GHz

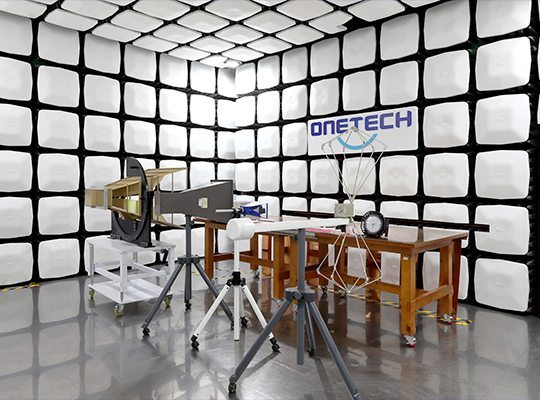

03 주요 시험장비
